Introducing openseespy-solvers

opensees

python

hpc

gpu

A small Python package that connects SciPy-style sparse linear and eigen solvers to OpenSeesPy’s PythonSparse system.

Author

Gustavo A. Araújo R.

Published

June 6, 2026

I released openseespy-solvers, a Python package that provides SciPy-style sparse linear and eigen solvers for OpenSeesPy’s PythonSparse system command.

The goal is simple: make it easier to experiment with solver backends while keeping the OpenSeesPy modeling workflow familiar.

How it works

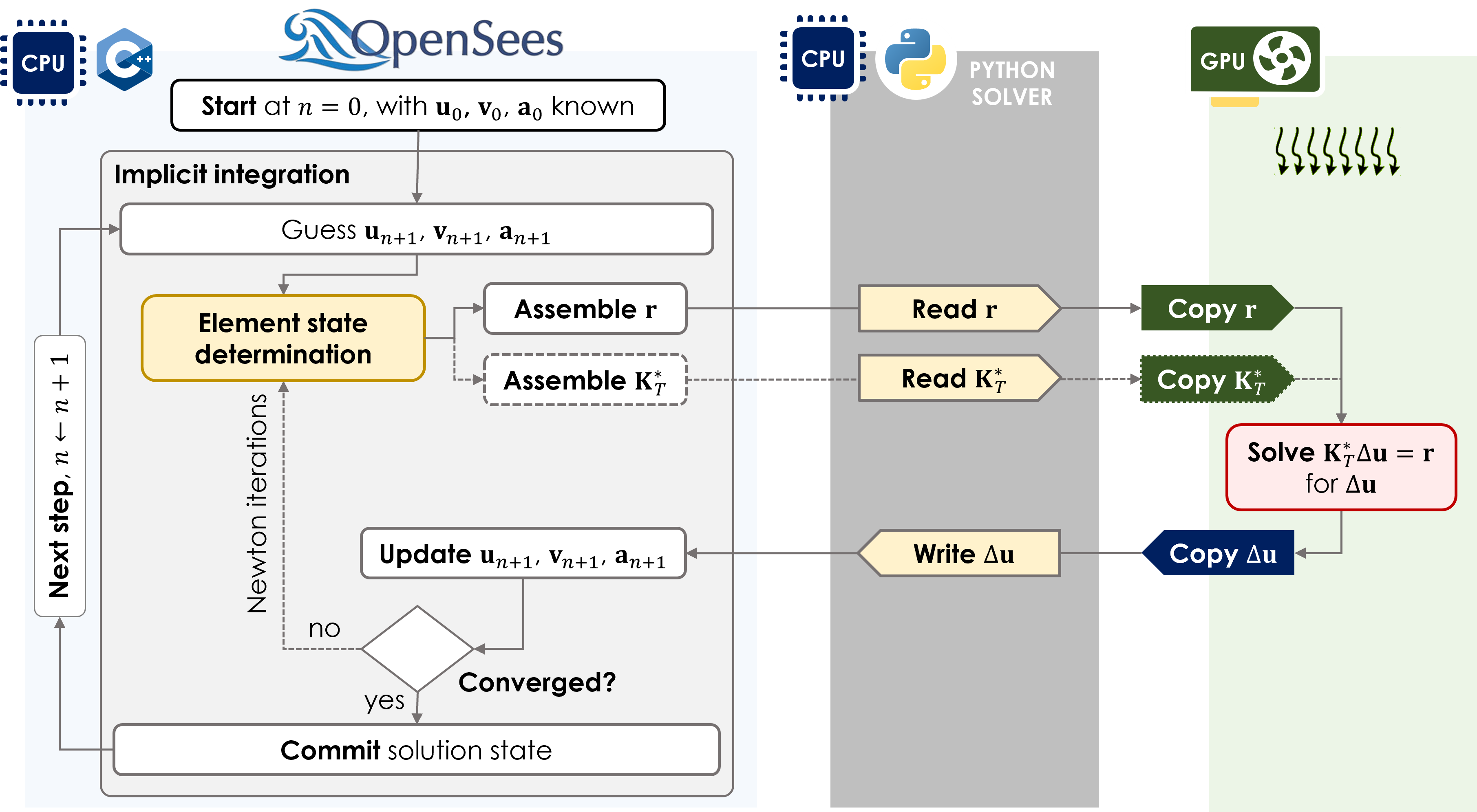

Schematic of OpenSees assembling residual and tangent matrices, passing them to a Python solver object, copying data to a GPU backend, solving for displacement increments, and returning the result to OpenSees. — Conceptual workflow for connecting OpenSeesPy’s `PythonSparse` interface to external Python solver backends, including GPU-enabled sparse solves.

OpenSeesPy still owns the finite-element model, the implicit integration loop, and the element state determination. During each analysis step, OpenSeesPy assembles the residual vector and tangent matrix, then passes those arrays through PythonSparse to a Python solver object.

That solver object can call a CPU backend such as SciPy, or copy the assembled arrays to a GPU backend such as CuPy or nvmath.sparse. Once the backend solves for the displacement increment, the solver writes the result back to OpenSeesPy so the analysis can update the trial state, check convergence, and continue.

Install

The base package includes NumPy/SciPy CPU solvers and requires Python 3.12 or newer:

python -m pip install openseespy-solvers

If OpenSeesPy is not already installed in your environment, use the optional extra:

python -m pip install "openseespy-solvers[opensees]"

Optional extras are available for UMFPACK and NVIDIA GPU backends:

python -m pip install "openseespy-solvers[umfpack]"
python -m pip install "openseespy-solvers[cuda12]"
python -m pip install "openseespy-solvers[cuda13]"

See the installation guide for platform notes, especially for UMFPACK on Windows and CUDA environments.

Quick Example

import openseespy.opensees as ops
from openseespy_solvers.scipy import spsolve

solver = spsolve()

# after defining the OpenSeesPy model:
ops.system("PythonSparse", solver.to_openseespy())
ops.numberer("Plain")
ops.constraints("Plain")
ops.integrator("LoadControl", 1.0)
ops.algorithm("Newton")
ops.analysis("Static")
ops.analyze(1)

For eigen analysis:

from openseespy_solvers.scipy import eigsh

eigensolver = eigsh(tol=1e-8)
eigenvalues = ops.eigen("PythonSparse", 5, eigensolver.to_openseespy())

Solver Backends

The package currently wraps solver objects from:

scipy.sparse.linalg for CPU sparse linear and eigen solves
cupyx.scipy.sparse.linalg for GPU sparse workflows through CuPy
nvmath.sparse for GPU direct sparse solves

For more info, refer to the documentation and other links below.

Links

This is an early release, and I am especially interested in feedback from OpenSeesPy users working with larger sparse systems, eigen analyses, and GPU-enabled environments.
